一、实验目的：

1.理解键的含义。
2.掌握键的设计方法。
3.掌握键值对的增删改查方法。

二、实验内容：

分析项目中数据存储的需求，给出键的设计方案，并应用Java客户端实现增删改查。按照下列要求，设计并实现一种在线购物商城的用户信息管理模块。其中，用户信息表包括：用户ID（userid）、用户名（username）、密码（password）、生日（birthday）、图像（userico）。

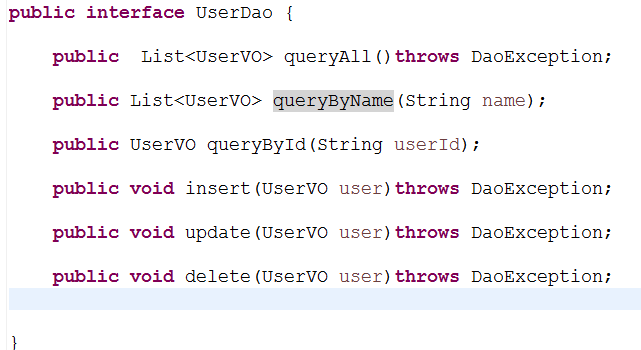

（1）任务一：定义并实现如下接口

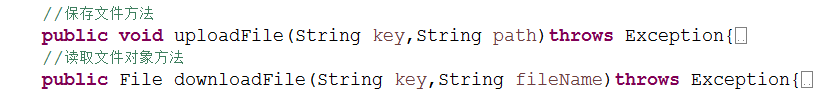

（2）任务二：以文件形式存储用户图像(选择)，并实现如下形式的java方法。

Key的形式是User:ID:ICO，ID是一个用户的主键。

三、实验过程：

实验环境：

阿里云ECS服务器下的Redis6.2.1
Windows10操作系统下的IntelliJ IDEA 2020.3.3 (Ultimate Edition)

功能实现：

UserDao.Java

package com.oracle.dao;

import com.oracle.pojo.UserVO;

import java.util.List;

/**
 * @author spondere
 * @version 1.8
 */
public interface UserDao {
    public List<UserVO> queryAll ();
    public List<UserVO> queryByName (String name);
    public UserVO queryById (String userId);

    public void insertByHash(UserVO user);
    public void insertByList(UserVO user);
    public void insertByString(UserVO user);

    public void updateByHash(UserVO user);
    public void updateByList(UserVO user);

    public void delete(UserVO user);
}


UserDaoRedisImpl.Java

package com.oracle.dao;

import com.oracle.pojo.UserVO;
import redis.clients.jedis.Jedis;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author spondere
 * @version 1.8
 */
public class UserDaoRedisImpl implements UserDao{
    private Jedis jedis = new Jedis("121.89.197.4",6379);

    @Override
    public List<UserVO> queryAll() {
        jedis.auth("123");
        String userlist = jedis.get(UserVO.class.getName());
        String[] userarr = userlist.split(",");
        List<UserVO> userList = new ArrayList<UserVO>();
        for (int i = 0;i<userarr.length;i++){
                UserVO v = new UserVO();
                String key = userarr[i];
                String value = jedis.get(key);
            String[] info = value.split(",");
            v.setUserId(key);
            v.setUserName(info[0]);
            v.setPassword(info[1]);
            v.setBirthday(info[2]);
            v.setUserico(info[3]);
            userList.add(v);
        }
        return userList;

    }

    @Override
    public List<UserVO> queryByName(String name) {
        jedis.auth("123");
        List<UserVO> user_list = new ArrayList<UserVO>();
        String keystr = jedis.get(name);
        String[] keyarr = keystr.split(",");
        UserVO v = new UserVO();
        for (int i=0; i<keyarr.length; i++){
            String key = keyarr[i];
            String value = jedis.get(key);
            if (value.equals(" ") == false){
                String[] info = value.split(",");
                v.setUserId(key);
                v.setUserName(info[0]);
                v.setPassword(info[1]);
                v.setBirthday(info[2]);
                v.setUserico(info[3]);
                user_list.add(v);
            }
        }
        return user_list;
    }


    @Override
    public UserVO queryById(String userId) {
        jedis.auth("123");
        String user_string_temp = jedis.get(userId);
        if (user_string_temp == null){
            return null;
        }else{
            String[] strarr = user_string_temp.split(",");
            UserVO v = new UserVO();
            v.setUserId(userId);
            v.setUserName(strarr[0]);
            v.setPassword(strarr[1]);
            v.setBirthday(strarr[2]);
            v.setUserico(strarr[3]);
            return v;
        }

    }

    @Override
    public void insertByHash(UserVO user) {
        jedis.auth("123");
        String key = user.getUserId();
        Map<String, String> userMap = new HashMap();
        userMap.put("username", user.getUserName());
        userMap.put("password", user.getPassword());
        userMap.put("birthday", user.getBirthday());
        userMap.put("userico", user.getUserico());
        jedis.hmset(key, userMap);
        String nameid = user.getUserName();
        String namevalue = jedis.get(nameid);
        if (namevalue == null){
            jedis.set(nameid, key);
        }else{
            namevalue = namevalue + "," + key;
            jedis.set(nameid, namevalue);
        }
        String allid = jedis.get(UserVO.class.getName());
        if (allid == null){
            jedis.set(UserVO.class.getName(), user.getUserId());
        }else{
            allid = allid + "," + user.getUserId() ;
            jedis.set(UserVO.class.getName(), allid);
        }
    }


    @Override
    public void insertByList(UserVO user) {
        jedis.auth("123");
        String key = user.getUserId();
        jedis.rpush(key,
                user.getUserName(),
                user.getPassword(),
                user.getBirthday(),
                user.getUserico());
        String nameid = user.getUserName();
        String namevalue = jedis.get(nameid);
        if (namevalue == null){
            jedis.set(nameid, key);
        }else{
            namevalue = namevalue + "," + key;
            jedis.set(nameid, namevalue);
        }
        String allid = jedis.get(UserVO.class.getName());
        if (allid == null){
            jedis.set(UserVO.class.getName(), user.getUserId());
        }else{
            allid = allid + "," + user.getUserId() ;
            jedis.set(UserVO.class.getName(), allid);
        }

    }

    @Override
    public void insertByString(UserVO user) {
        jedis.auth("123");
        String key = user.getUserId();
        jedis.set(key,JSON.toJSONString(user));
        String nameid = user.getUserName();
        String namevalue = jedis.get(nameid);
        if (namevalue == null){
            jedis.set(nameid, key);
        }else{
            namevalue = namevalue + "," + key;
            jedis.set(nameid, namevalue);
        }
        String allid = jedis.get(UserVO.class.getName());
        if (allid == null){
            jedis.set(UserVO.class.getName(), user.getUserId());
        }else{
            allid = allid + "," + user.getUserId() ;
            jedis.set(UserVO.class.getName(), allid);
        }
    }


    @Override
    public void updateByHash(UserVO user) {
        jedis.auth("123");
        Map<String, String> userMap = new HashMap();
        userMap.put("username", user.getUserName());
        userMap.put("password", user.getPassword());
        userMap.put("birthday", user.getBirthday());
        userMap.put("userico", user.getUserico());
        jedis.hmset(user.getUserId(), userMap);
    }

    @Override
    public void updateByList(UserVO user) {
        jedis.auth("123");
        String key = user.getUserId();
        jedis.del(key);
        jedis.rpush(key,
                user.getUserName(),
                user.getPassword(),
                user.getBirthday(),
                user.getUserico());
    }

    @Override
    public void delete(UserVO user) {
        jedis.auth("123");
        jedis.del(user.getUserId());
    }
}

UserVO.Java

package com.oracle.pojo;

/**
 * @author spondere
 * @version 1.8
 */
public class UserVO {
    private String userName;
    private String password;
    private String userId;
    private String birthday;
    private String userico;

    public String getUserico() {
        return userico;
    }

    public void setUserico(String userico) {
        this.userico = userico;
    }

    public String getBirthday() {
        return birthday;
    }

    public void setBirthday(String birthday) {
        this.birthday = birthday;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getUserId() {
        return userId;
    }

    public void setUserId(String userId) {
        this.userId = userId;
    }

}

Test1.Java

package com.oracle;

import com.oracle.dao.UserDao;
import com.oracle.dao.UserDaoRedisImpl;
import com.oracle.pojo.UserVO;

import java.util.Iterator;
import java.util.List;

/**
 * @author spondere
 * @version 1.8
 */
public class Test1 {
    public static void main(String[] args) {
            UserVO t = new UserVO();
            t.setUserName("test");
            t.setPassword("123");
            t.setUserId("1814010130");
            t.setBirthday("2021-04-01");
            t.setUserico("C:\\Users\\zlh\\Desktop\\图片\\Snipaste_2021-04-06_17-22-17.png");
            UserDao userDao = new UserDaoRedisImpl();
            userDao.insertByString(t); //插入数据
            UserVO v = new UserVO();
            v = userDao.queryById("1814010130"); //按 id 查找
            System.out.println(v.getPassword());
            System.out.println(v.getUserName());
            System.out.println(v.getBirthday());
            System.out.println(v.getUserico());
    }
}

Test2.Java

package com.oracle;

import com.oracle.dao.UserDao;
import com.oracle.dao.UserDaoRedisImpl;
import com.oracle.pojo.UserVO;

import java.util.Iterator;
import java.util.List;

/**
 * @author spondere
 * @version 1.8
 */
public class Test2 {
    public static void main(String[] args) {
            UserVO t2 = new UserVO();
            t2.setUserName("test2");
            t2.setPassword("888999");
            t2.setUserId("1814010130");
            t2.setBirthday("2021-04-10");
            t2.setUserico("C:\\Users\\zlh\\Desktop\\图片\\Snipaste_2021-04-06_17-22-17.png");
            UserDao userDao = new UserDaoRedisImpl();
            userDao.insertByString(t2); //插入数据
            List<UserVO> q = userDao.queryByName("test2");
            Iterator<UserVO> it = q.iterator();
            while (it.hasNext()) {
                UserVO v = it.next();
                System.out.println(v.getUserId());
                System.out.println(v.getPassword());
                System.out.println(v.getUserName());
                System.out.println(v.getBirthday());
                System.out.println(v.getUserico());
            }
    }
}

Test3.java

package com.oracle;

import redis.clients.jedis.Jedis;
import sun.misc.BASE64Decoder;
import sun.misc.BASE64Encoder;

import javax.imageio.ImageIO;
import java.awt.image.BufferedImage;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.File;
import java.io.IOException;

public class Test3 {
    static BASE64Encoder encoder = new sun.misc.BASE64Encoder();
    static BASE64Decoder decoder = new sun.misc.BASE64Decoder();

    private static Jedis jedis = new Jedis("121.89.197.4",6379);
    public static void main(String[] args) {
        String path1="C:\\Users\\zlh\\Desktop\\图片\\Snipaste_2021-04-06_17-22-17.png";
        String path2="C:\\Users\\zlh\\Desktop\\图片\\test.png";
        String key="图片";
        System.out.println(uploadFile(key, path1));
        downloadFile(key,path2);
    }

    /**
     * 将图片转换成二进制
     *
     * @return
     */
    static String uploadFile(String key, String path) {
        jedis.auth("123");
        File f = new File(path);
        BufferedImage bi;
        try {
            bi = ImageIO.read(f);
            ByteArrayOutputStream baos = new ByteArrayOutputStream();
            ImageIO.write(bi, "jpg", baos);  //经测试转换的图片是格式这里就什么格式，否则会失真
            byte[] bytes = baos.toByteArray();
            jedis.set(key, encoder.encodeBuffer(bytes).trim());
            return encoder.encodeBuffer(bytes).trim();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return null;
    }

    /**
     * 将二进制转换为图片
     *
     * @param key,path
     */
    static void downloadFile(String key, String path) {
        try {
            String base64String = jedis.get(key);
            byte[] bytes1 = decoder.decodeBuffer(base64String);

            ByteArrayInputStream bais = new ByteArrayInputStream(bytes1);
            BufferedImage bi1 = ImageIO.read(bais);
            File w2 = new File(path);// 可以是jpg,png,gif格式
            ImageIO.write(bi1, "jpg", w2);// 不管输出什么格式图片，此处不需改动
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>org.example</groupId>
    <artifactId>RedistProject</artifactId>
    <version>1.0-SNAPSHOT</version>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>6</source>
                    <target>6</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
    <dependencies>
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>2.9.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.1.23</version>
        </dependency>
    </dependencies>
</project>

四、实验结果及总结：

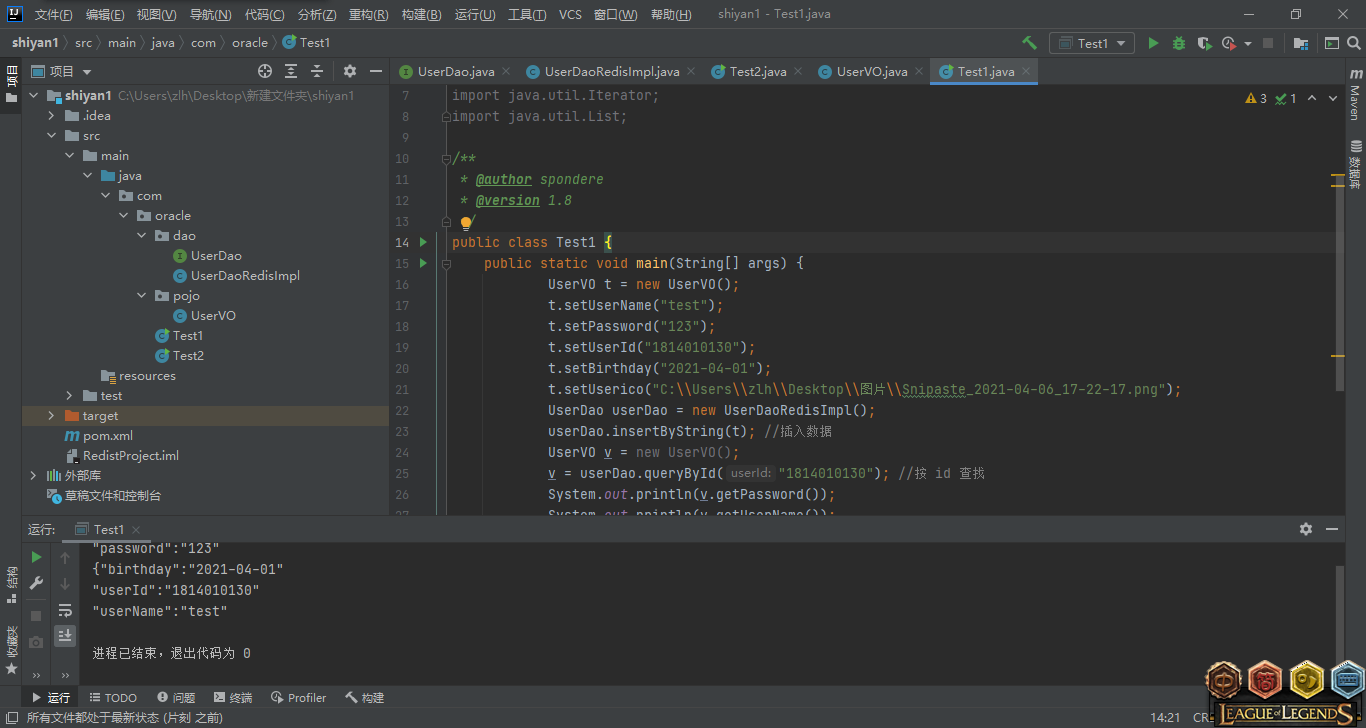

Test1.java运行结果：

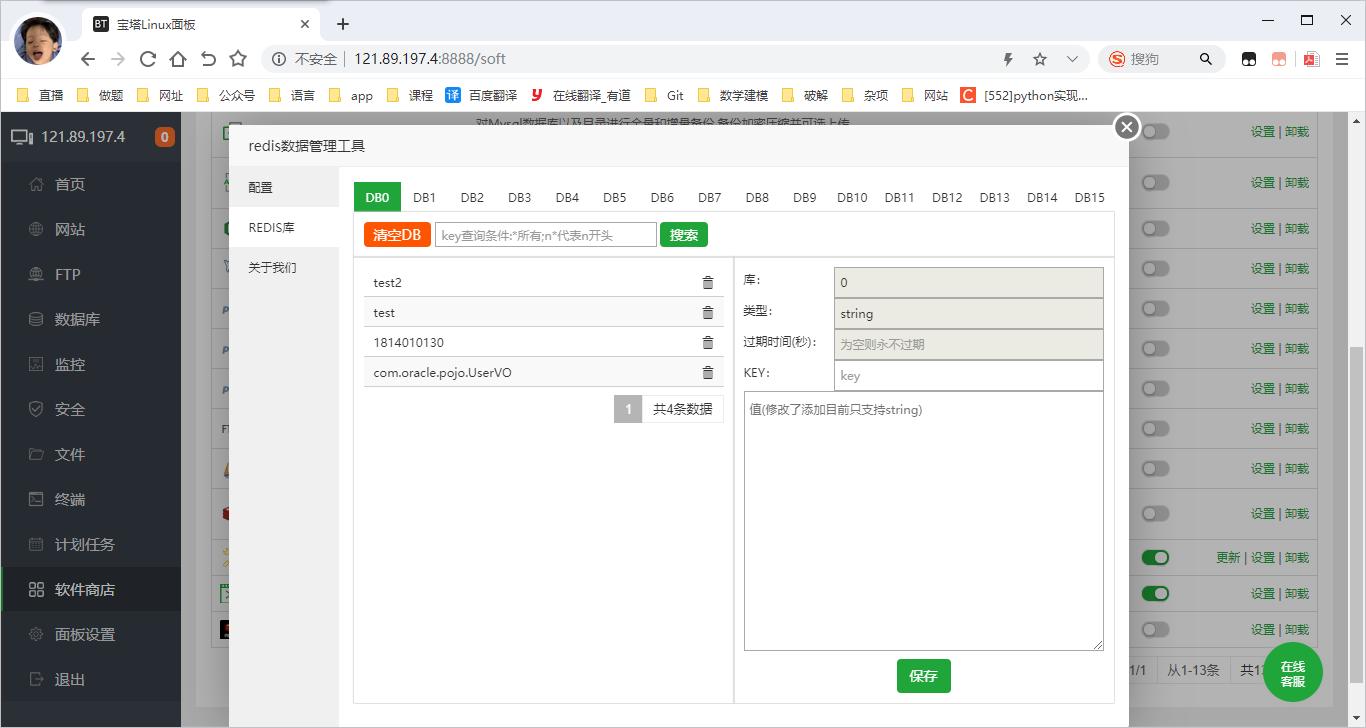

Test1.java运行后redis数据库内容：

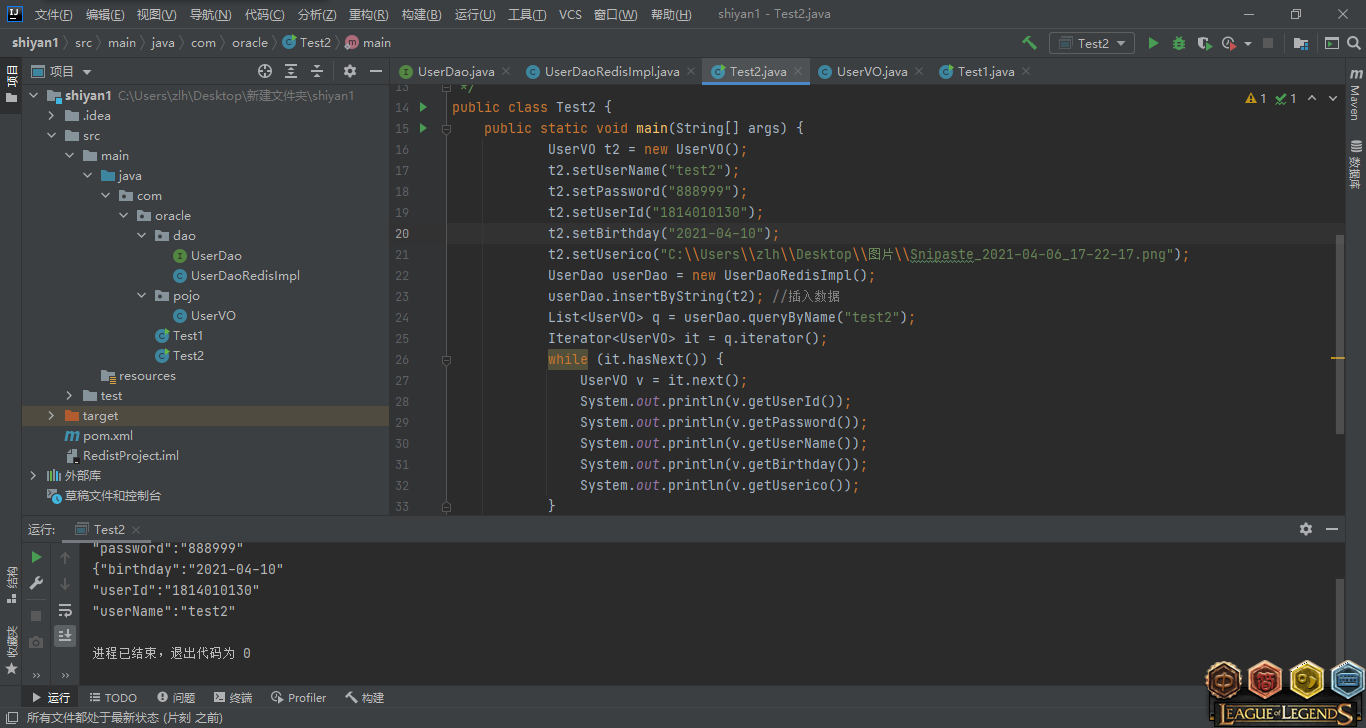

Test2.java运行结果：

Test2.java运行后redis数据库内容：

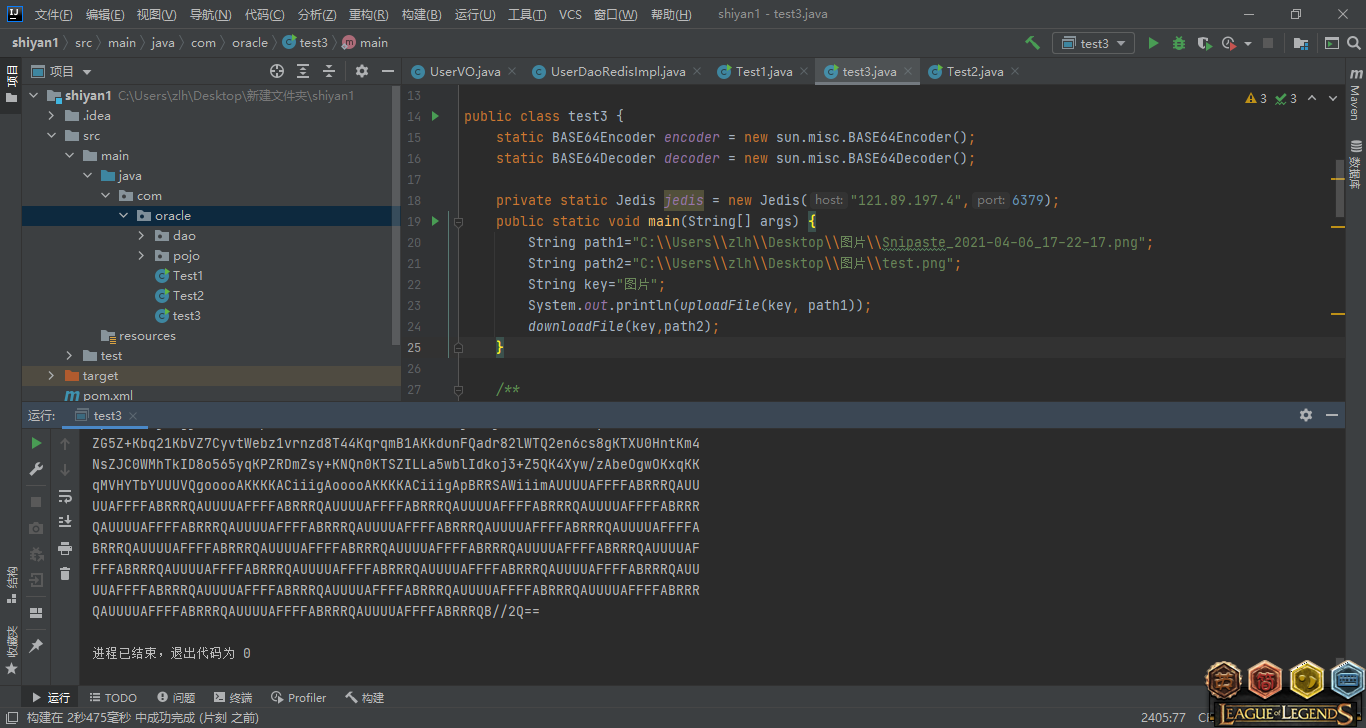

Test3.java运行结果：

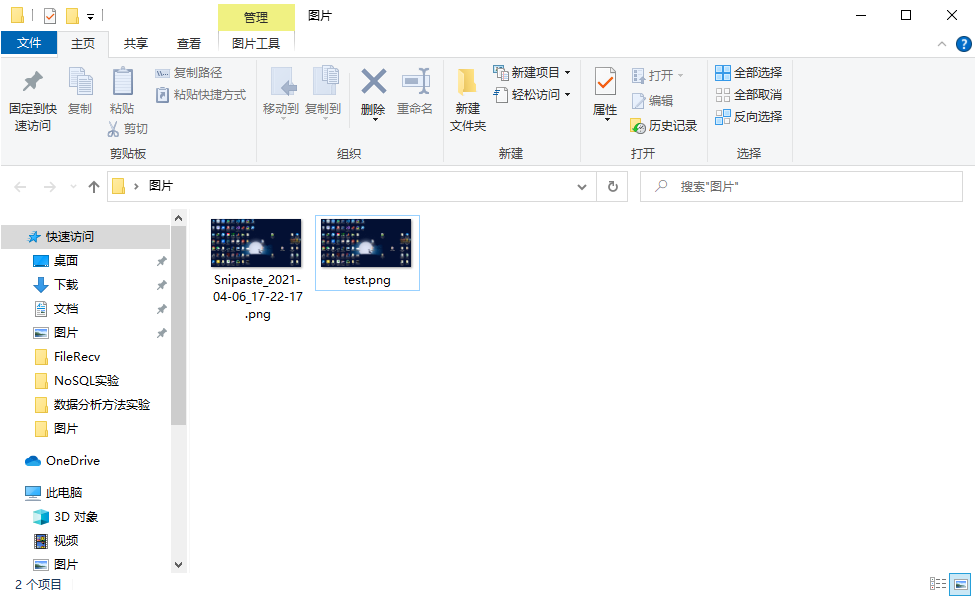

此时可以看见文件夹里面多了一个test.png(查询字符串后保存出来的，用于验证方法可行性）

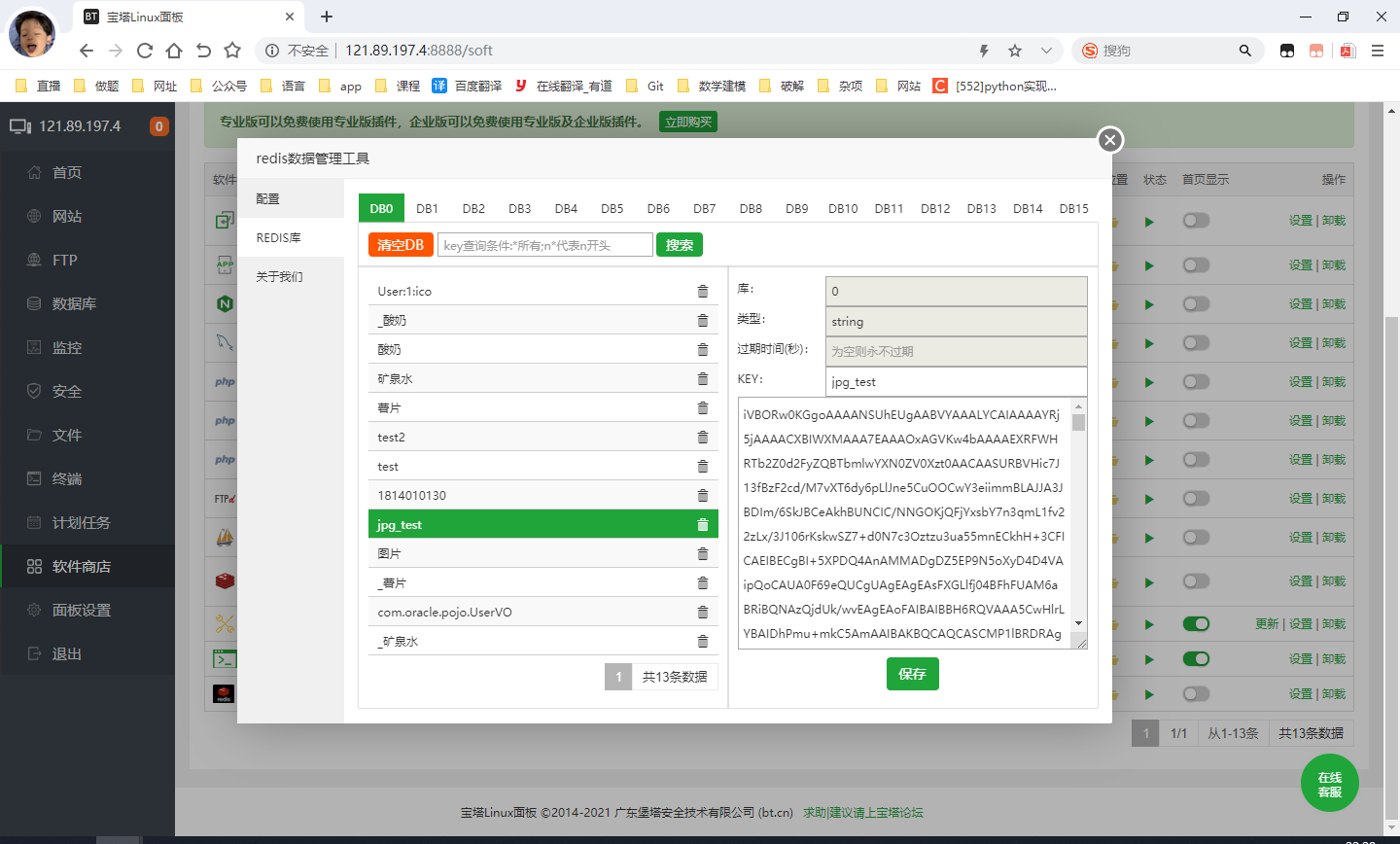

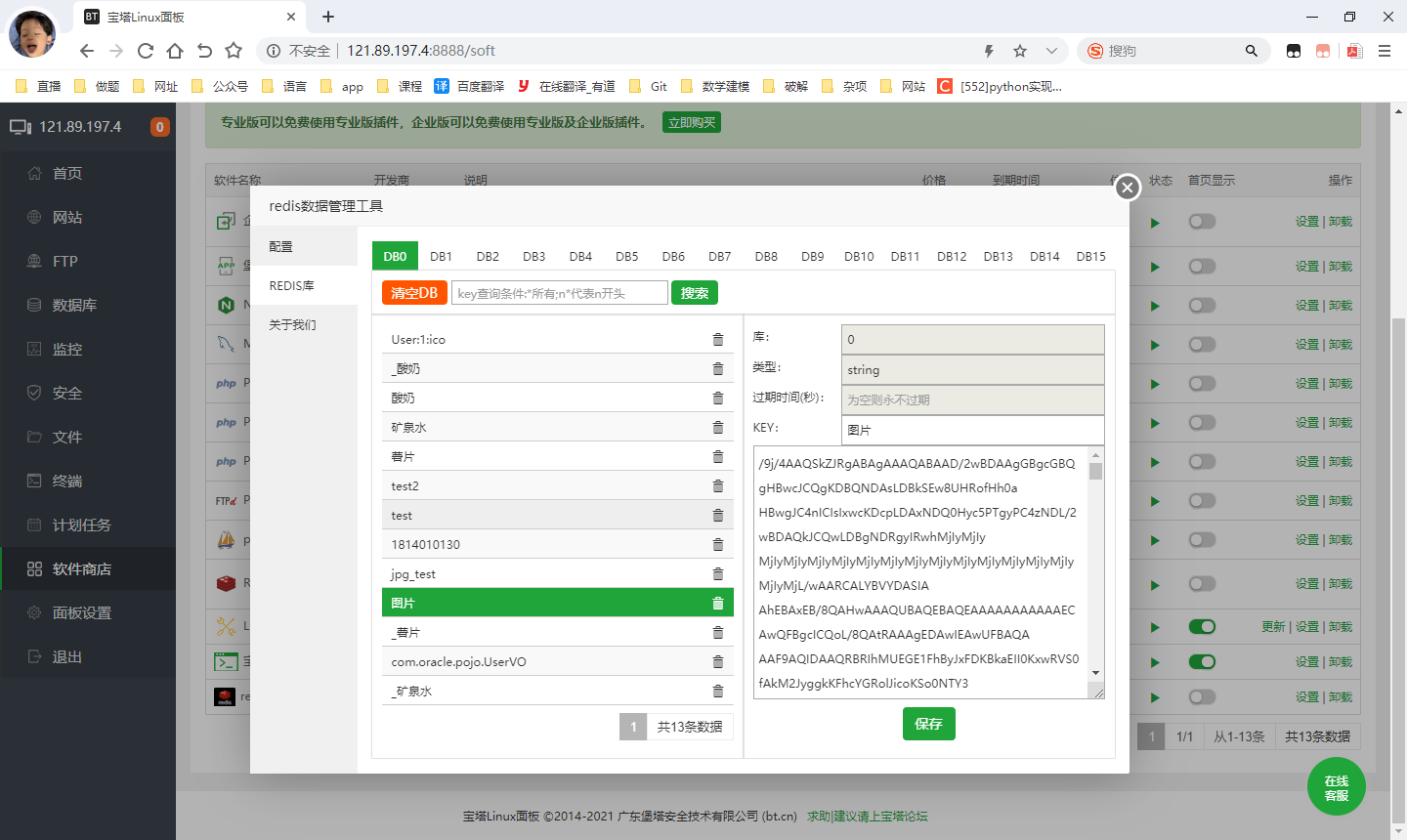

Test3.java运行后redis数据库内容：

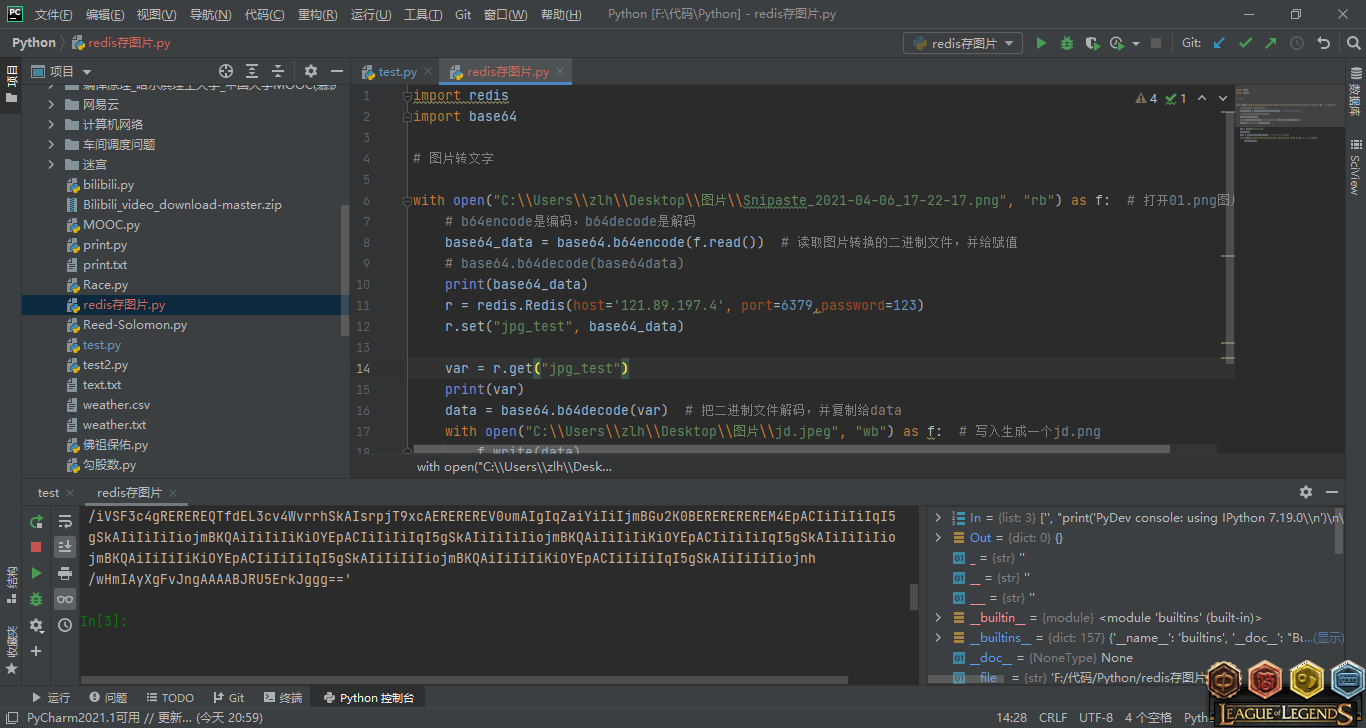

Test.py运行结果：

此时可以看见文件夹里面多了一个jd.jpeg(查询字符串后保存出来的，用于验证方法可行性）

Test.py运行后redis数据库内容：
